| 브랜드 이름: | DZ |
| 모델 번호: | DZS1-4 |
| MOQ: | 1 |
| 가격: | 협상 가능 |
| 지불 조건: | L/C,T/T |

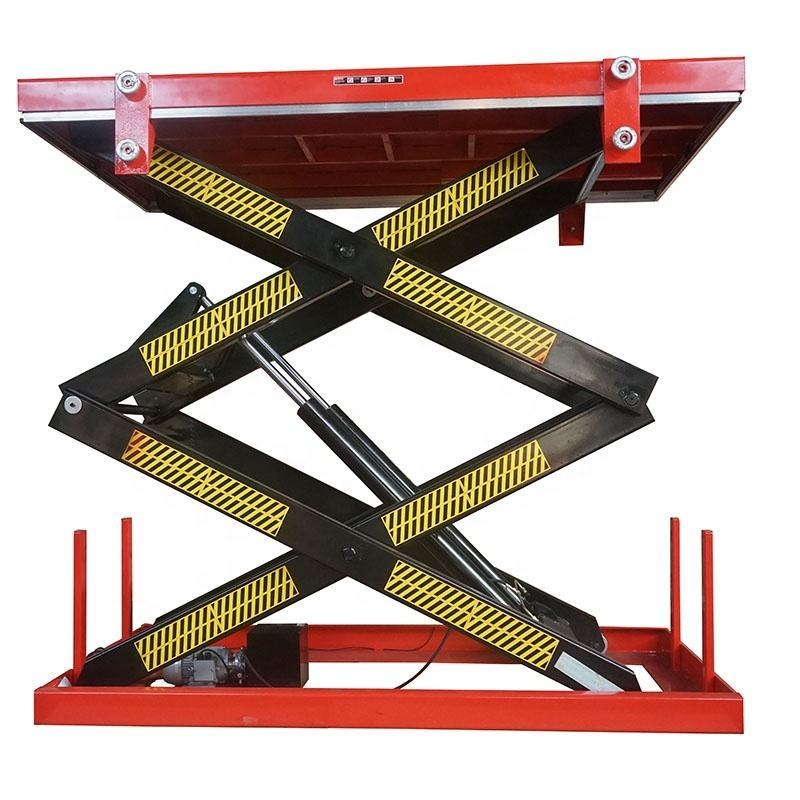

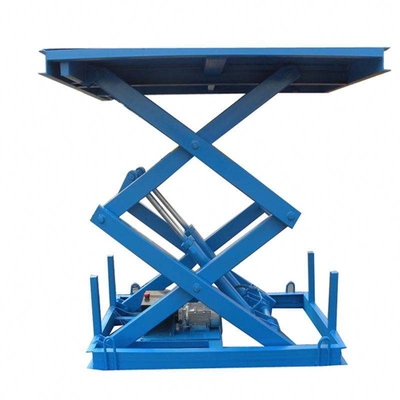

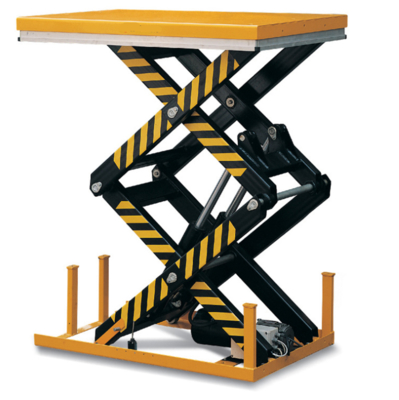

1000kg Load Capacity Scissor Lift Table Electric Hydraulic Lift Platform
Standard Features:
Description:
Stationary scissor lift Tables are divided into single scissors lift tables, two scissors lift tables and multi scissors lift tables. Scissor lift tables have standard models with the loading capacity from 400kg to 4000kg and max platform height from 1m to 4m. Hydraulic scissor lift tables are popular by its simple structure, big loading capacity, stable lifting up and down and easy installation and maintenance.
Specifications:
| Model | Capacity | Platform Size | Lifting Height | Motor Power | Min.Height | Power Supply(V) |
| DZS1-2 | 1000KG | 2000X1500MM | 2000MM | 3KW | 400MM | 220/240/380/415 |
| DZS1-2.5 | 1000KG | 2000X1500MM | 2500MM | 3KW | 400MM | 220/240/380/415 |
| DZS1-3 | 1000KG | 2000X1500MM | 3000MM | 3KW | 520MM | 220/240/380/415 |
| DZS1-3.5 | 1000KG | 2000X1500MM | 3500MM | 3KW | 520MM | 220/240/380/415 |
| DZS1-4 | 1000KG | 2000X1500MM | 4000MM | 3KW | 630MM | 220/240/380/415 |
| DZS1-4.5 | 1000KG | 2000X1500MM | 4500MM | 3KW | 630MM | 220/240/380/415 |
| DZS1-5 | 1000KG | 2000X1500MM | 5000MM | 3KW | 630MM | 220/240/380/415 |
| DZS2-2 | 2000KG | 2500X1500MM | 2000MM | 4KW | 520MM | 220/240/380/415 |
| DZS2-2.5 | 2000KG | 2500X1500MM | 2500MM | 4KW | 520MM | 220/240/380/415 |
| DZS2-3 | 2000KG | 2500X1500MM | 3000MM | 4KW | 520MM | 220/240/380/415 |
| DZS2-3.5 | 2000KG | 2500X1500MM | 3500MM | 4KW | 680MM | 220/240/380/415 |
| DZS2-4 | 2000KG | 2500X1500MM | 4000MM | 4KW | 680MM | 220/240/380/415 |
| DZS2-4.5 | 2000KG | 2500X1500MM | 4500MM | 4KW | 680MM | 220/240/380/415 |
| DZS2-5 | 2000KG | 2500X1500MM | 5000MM | 4KW | 830MM | 220/240/380/415 |
| DZS3-2 | 3000KG | 3000X2000MM | 2000MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-2.5 | 3000KG | 3000X2000MM | 2500MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-3 | 3000KG | 3000X2000MM | 3000MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-3.5 | 3000KG | 3000X2000MM | 3500MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-4 | 3000KG | 3000X2000MM | 4000MM | 4KW | 840MM | 220/240/380/415 |
| DZS3-4.5 | 3000KG | 3000X2000MM | 4500MM | 4KW | 840MM | 220/240/380/415 |
| DZS3-5 | 3000KG | 3000X2000MM | 5000MM | 4KW | 840MM | 220/240/380/415 |
| DZS4-2 | 4000KG | 4000X2000MM | 2000MM | 5.5KW | 480MM | 220/240/380/415 |
| DZS4-2.5 | 4000KG | 4000X2000MM | 2500MM | 5.5KW | 480MM | 220/240/380/415 |
| DZS4-3 | 4000KG | 4000X2000MM | 3000MM | 5.5KW | 680MM | 220/240/380/415 |
| DZS4-3.5 | 4000KG | 4000X2000MM | 3500MM | 5.5KW | 680MM | 220/240/380/415 |
| DZS4-4 | 4000KG | 4000X2000MM | 4000MM | 5.5KW | 680MM | 220/240/380/415 |
Application:
Scissor Lift tables are mainly used for warehouse goods lifting between different levels of floors. Both in door and outdoor are available.
FAQ:
1. Can you customize product ?
Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.
2. How can you ensure your quality?
Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.
3. What is your delivery & after-sales service?
The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.
4.How long will it take you to ship the goods?
It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.
5.What kinds of payment you accept?
We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
|
