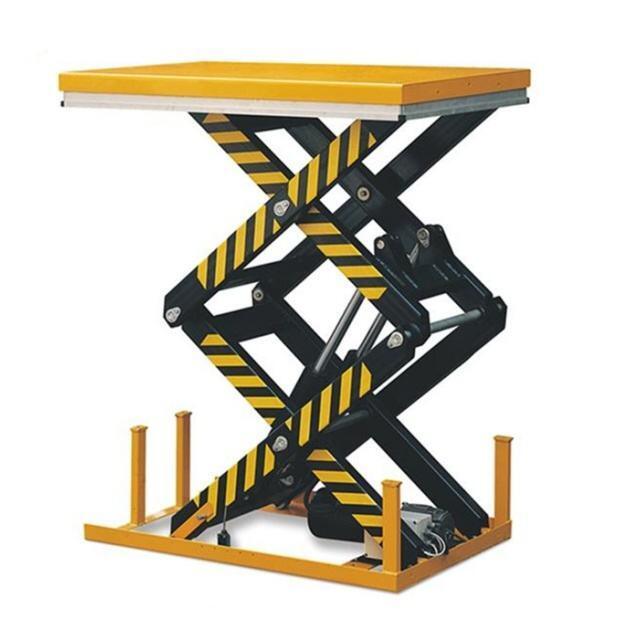

1ton 3m Small Warehouse Hydraulic Goods Lift Electric Scissor Lift Tables
Standard Features:
Description:
The hydraulic scissor lift platform realizes the lifting function through the hydraulic system, which is easy to operate, can quickly complete the loading and unloading and handling of goods, and significantly improve the work efficiency. This kind of lift table has high bearing capacity, which can meet the handling requirements of materials with different weights and is suitable for various scenes, it is suitable for operation in outdoor and indoor. At the same time, its height is adjustable, which can adapt to different working height requirements.
Specifications:
| Model | Capacity | Platform Size | Lifting Height | Motor Power | Min.Height | Power Supply(V) |
| DZS1-2 | 1000KG | 2000X1500MM | 2000MM | 3KW | 400MM | 220/240/380/415 |
| DZS1-2.5 | 1000KG | 2000X1500MM | 2500MM | 3KW | 400MM | 220/240/380/415 |
| DZS1-3 | 1000KG | 2000X1500MM | 3000MM | 3KW | 520MM | 220/240/380/415 |
| DZS1-3.5 | 1000KG | 2000X1500MM | 3500MM | 3KW | 520MM | 220/240/380/415 |
| DZS1-4 | 1000KG | 2000X1500MM | 4000MM | 3KW | 630MM | 220/240/380/415 |
| DZS1-4.5 | 1000KG | 2000X1500MM | 4500MM | 3KW | 630MM | 220/240/380/415 |
| DZS1-5 | 1000KG | 2000X1500MM | 5000MM | 3KW | 630MM | 220/240/380/415 |
| DZS2-2 | 2000KG | 2500X1500MM | 2000MM | 4KW | 520MM | 220/240/380/415 |
| DZS2-2.5 | 2000KG | 2500X1500MM | 2500MM | 4KW | 520MM | 220/240/380/415 |
| DZS2-3 | 2000KG | 2500X1500MM | 3000MM | 4KW | 520MM | 220/240/380/415 |
| DZS2-3.5 | 2000KG | 2500X1500MM | 3500MM | 4KW | 680MM | 220/240/380/415 |
| DZS2-4 | 2000KG | 2500X1500MM | 4000MM | 4KW | 680MM | 220/240/380/415 |
| DZS2-4.5 | 2000KG | 2500X1500MM | 4500MM | 4KW | 680MM | 220/240/380/415 |
| DZS2-5 | 2000KG | 2500X1500MM | 5000MM | 4KW | 830MM | 220/240/380/415 |
| DZS3-2 | 3000KG | 3000X2000MM | 2000MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-2.5 | 3000KG | 3000X2000MM | 2500MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-3 | 3000KG | 3000X2000MM | 3000MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-3.5 | 3000KG | 3000X2000MM | 3500MM | 4KW | 640MM | 220/240/380/415 |
| DZS3-4 | 3000KG | 3000X2000MM | 4000MM | 4KW | 840MM | 220/240/380/415 |
| DZS3-4.5 | 3000KG | 3000X2000MM | 4500MM | 4KW | 840MM | 220/240/380/415 |
| DZS3-5 | 3000KG | 3000X2000MM | 5000MM | 4KW | 840MM | 220/240/380/415 |
| DZS4-2 | 4000KG | 4000X2000MM | 2000MM | 5.5KW | 480MM | 220/240/380/415 |
| DZS4-2.5 | 4000KG | 4000X2000MM | 2500MM | 5.5KW | 480MM | 220/240/380/415 |
| DZS4-3 | 4000KG | 4000X2000MM | 3000MM | 5.5KW | 680MM | 220/240/380/415 |
| DZS4-3.5 | 4000KG | 4000X2000MM | 3500MM | 5.5KW | 680MM | 220/240/380/415 |
| DZS4-4 | 4000KG | 4000X2000MM | 4000MM | 5.5KW | 680MM | 220/240/380/415 |
Application:
Scissor Lift tables are mainly used for warehouse goods lifting between different levels of floors. Both in door and outdoor are available.
FAQ:
1. Can you customize product ?
Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.
2. How can you ensure your quality?
Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.
3. What is your delivery & after-sales service?
The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.
4.How long will it take you to ship the goods?
It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.
5.What kinds of payment you accept?
We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
